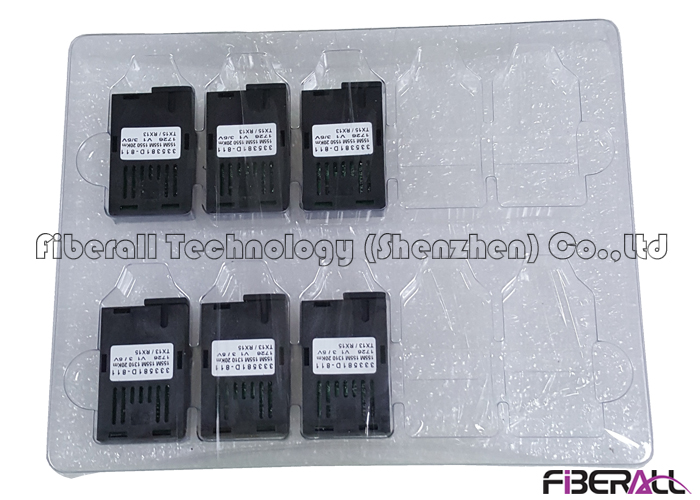

FA-TC901S53-20,3.3/5V Dual Power Supply Fiber Optic Transceiver 1*9 155Mbps SC Simplex 1550nm
Optical transceivers and fiber optic jumpers are the most important infrastructures for network connections. In the storage area network (SAN, Storage Area Network), the switch is used between the server and storage equipment, that is to say, between the server and storage device, switch and storage device, switch and switch, optical fiber transceiver and optical fiber jumper are required for interconnection. Of course, according to the specific different application, we have to choose different optical modules and fiber optic jumper, so as to achieve the best performance of the device. In addition to considering performance, we also need to consider network expansion in the future. Therefore, it is necessary to design an economical and effective solution for both optical transceivers and fiber patch cords. So there are several key points to affect the choice of the optical transceivers and fiber patch cords:
1, Servers: depending on the specific load requirements, users can select servers with 1GbE, 10GbE, or 40GbE bandwidth. Of course, as the server bandwidth is different, the fiber optical transceiver and fiber optic jumper will also be different. If the distance between the server and the switch is short, like in the same frame, sometimes even in the same row, and then do not need to use long fiber patch cord to connect them. And sometimes user will use Cat5/Cat6 copper patch cord; 2, Storage equipment; 3, Switches.
Product Specification Of 1x9 Fiber Transceiver
| Part Number | FA-TC901S53-20 |
| Module Description | 1x9 Optical Transceiver 155M SC WDM 1550nm/1310nm 20KM |
| Transmitting direction | BiDi |
| Transmitting distance | Up to 20KM |
| Data rate | 155Mbps/155Mbps |
| Fiber Interface | SC |
| Fiber Channel | Single Fiber |
| Working wavelength | 1550Tx/1310Rx |
| Power Supply | 3.3V, 5V or 3.3/5V for options |
Product Features
Standard 1X9 universal package
Single Fiber with WDM transmission technology
Operating wavelength 1310nm/1550 nm
Single +3.3V power supply or 3.3/5V dual power supply
LVPECL Data Interface
Isolation > 30dB, Cross Talk < -45dB
RoHS Compliant
Compliant with Telcordia (Bellcore) GR-468-CORE
Eye Safety Level Meet Laser Class1, Compliant with IEC60825-1
